    Alarm Position Oil Pressure Gauge Sensor

    Ask Lasest Price
    Brand Name : VDO
    Model Number : 360-081-030-015C
    Certification : CE, Rohs, ISO9001
    Price : USD 3.00-7.00 per unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 units per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

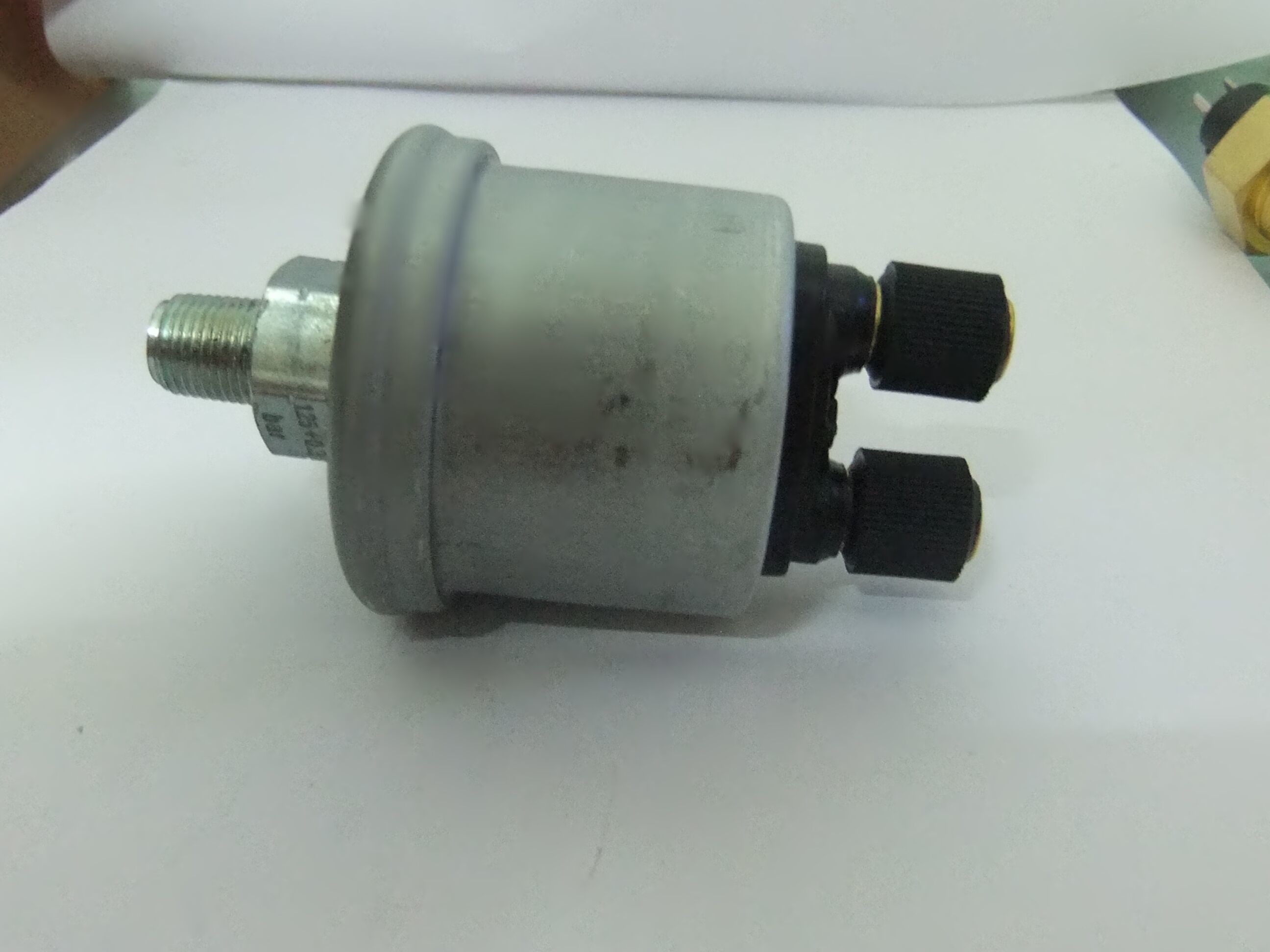

    Alarm Position Oil Pressure Gauge Sensor


    VDO Oil pressure sensor 360-081-030-015C 0-10bar, Alarm Position 0.8±0.3bar, 1/8-27 NPTF, Thread Length 19.5mm


    Oil Pressure Sensor VDO

    is kind of protection equipment for the generators which is connected to the controller to protection the generator operation in normal type. When the generator in unnormal level, the sensor will send the signal to the controller then the controller will send warning to make sure you will find the problem was.
    Generator VDO Oil Pressure Sensor Replace For Original VDO
    PRESSURE(BAR)
    0
    2
    4
    6
    8
    10
    RESISTANCE VALUE
    10±3
    52±4
    10±3
    88±4
    124±5
    184±10
    Warning Temp:0.8±0.3bar
    Thread:1/8 NPT
    Weight:115G

    VDO Diesel Generator Pressure Sensor :


    Customized Range for VDO Diesel Generator Oil Sensor : 0-5 Bar, 0-10 Bar, 0-16 Bar


    Customized Alarmfor VDO Gasoline Generator Oil Pressure Sensor: 0.25±0.15 Bar,0.5±0.15 Bar,0.6±0.15 Bar,0.7±0.15 Bar,0.8±0.3 Bar,1±0.15 Bar and etc.


    Customized Thread Size for VDO Gasoline Generator Pressure Sensor : M10*1, 1/8''-27, M12*1.5, M14*1.5, M18*1.5, 1/4''-18, 1/8''-27


    Generator Temperature VDO Sensor :


    Customized Range for Generator Water Temperature Sensor : 0-120C, 0-100C, 0-150


    Customized Alarmfor VDO Water Temperature Sensor: 95 ± 3C, 97 ± 3C, 98 ± 3C, 100 ± 3C, 103 ± 3C, 105 ± 3C and etc.


    Customized Thread Size for VDO Temperature Sensor : 3/8''- 18, 1/2''- 14 NPTF, M10*1.5, M12*1.5, M14*1.5, M16*1.5, M18*1.5, 1/8''- 27, 1/4''- 18, 5/8''-18


    VDO Gauges:

    VDO Water Temperature Gauge (12V, 24V) : 38-120 ℃

    VDO Oil Pressure Gauge (12V, 24V) : 0-10.3 Bar (0-150 PSI)

    VDO Oil Temperature Gauge (12V, 24V) : 50-150 ℃

    VDO Volt Gauge (12V, 24V) : 8-16V or 16-32V

    VDO Hour Gauge / Hour Meter (12V / 24V)

    VDO Fuel Gauge (12V, 24V)


    Alarm Position Oil Pressure Gauge SensorAlarm Position Oil Pressure Gauge SensorAlarm Position Oil Pressure Gauge SensorAlarm Position Oil Pressure Gauge Sensor


    Examples for Gasoline Generator Oil VDO Sensor :


    Part No.Range (Bar)Alarm Position (Bar)Thread SizeThread Length (mm)
    360-081-030-001C50.25 ± 0.15M10 x 1 con. short19.5
    360-081-030-001K50.25 ± 0.15M10 x 1 con. short19.5
    360-081-030-002C50.5 ± 0.15M10 x 1 con. short19.5
    360-081-030-006C50.6 ± 0.15M12 x 1.520.5
    360-081-030-008C50.5 ± 0.15M12 x 1.520.5
    360-081-030-009C100.5 ± 0.15M10 x 1 con. short19.5
    360-081-030-009K100.5 ± 0.15M10 x 1 con. short19.5
    360-081-030-010C51.4 ± 0.31/8 – 27 NPTF19.5
    360-081-030-014C50.6 ± 0.15M10 x 1 con. short19.5
    360-081-030-015C100.8 ± 0.31/8 – 27 NPTF19.5
    360-081-030-017C100.9 ± 0.15M10 x 1 con. short19.5
    360-081-030-019C101.5 ± 0.15M12 x 1.520.5
    360-081-030-022C100.5 ± 0.15M12 x 1.520.5
    360-081-030-028K50.5 ± 0.15M14 x 1.520.5
    360-081-030-030C100.7 ± 0.15M14 x 1.520.5
    360-081-030-037C100.75 ± 0.2M18 x 1.520.5
