    Cummins Fuel Engine Speed Control Governor

    Ask Lasest Price
    Brand Name : WESPC
    Model Number : EFC3044196
    Certification : CE, Rohs, ISO9001
    Price : USD 15.00-75.00 per unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Cummins Fuel Engine Speed Control Governor


    3044196 EFC Speed Controller Diesel engine Electric fuel control governor for Cummins NTA855 Engine


    Governor EFC3044196

    Speed Controller EFC 3044196 Electronic Governor For Generators is PID adjustment design. It can instant and accurately reaction to the transient change of the loading then to make the engine speed in stable situation. It can perfectly control the engine speed by connected to the EFC series Electronic Acuator and Speed Sensor.


    Product Name
    Speed Controller EFC 3044196 Electronic Governor For Generators
    Speed stablity
    Better than ±0.25%
    Speed range
    1Khz ~ 6.5Khz
    Thermostablity
    Max ± 0.7%
    Idle adjustment
    260 ± 20Hz ~ Rated speed 85%
    Power input
    Voltage

    24V DC

    Output
    40mA
    Signal of speed sensor
    2 ~ 120V RMS

    Product Description

    * 3044196 is a engine speed controller designed by all electronic device for 's actuator.

    * It can fast and precise response to transient load changes.

    * It has a wide speed control range.

    * For these controllers, separate circuits allow adjustments of proportional, integral and derivative values.

    *These parameters all work together to provide a control that results in fast and stable engine response to load changes


    3044196
    InputSupply24 VDC ±20%
    PolarityNegative Ground (Case Isolated)
    Power Consumption40 MA
    Maximum Actuator Current4.5 A continuous
    Speed Sensor Signal2-120 Volts RMS
    PerformanceIsochronous Operation/Steady State Stability±0.25% or better
    Speed Range/Governor1K to 6.5K Hz continuous
    Speed Drift with Temperature±1 Max
    Idle Regulation260±20 Hz
    Droop Adj. Max.400 Hz., ±75Hz. Per 1.0A change
    Speed Trim Range±200 Hz with 1 ohm connected
    Remote Variable Speed Range25 to 100% of rated speed
    Impedance1m ohms
    EnvironmentalAmbient Operating Temperature Range-40 to +85 Deg. C
    Relative HumidityUp to 95%
    All Surface FinishesFungus Proof and Corrosion Resitant
    ReliabilityVibration20 to 100 Hz. 500mm/sec

    Our advantage

    Adopting Best Component Only

    We are never compromise the quality,focus on details, Each component is strictly tested before assemblying. Using importing for the main parts.

    100% exactly replaced and match

    During over 10 years improving, the 3044196 can 100% replaced the orignal one and perfect match for the most of the engine

    Advanced equipment

    Factory used the advanced equipment to produce, assembly and inspect the control governor. To ensure the high accuracy

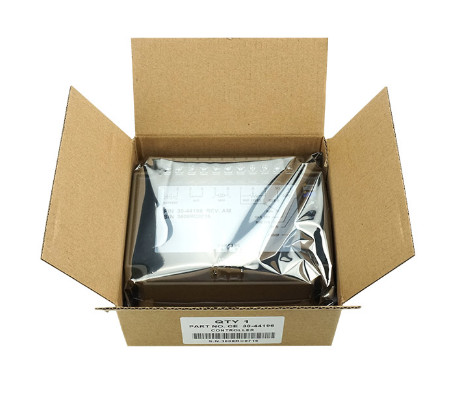

    Pictures of prodcution with package


    Cummins Fuel Engine Speed Control Governor

    Cummins Fuel Engine Speed Control Governor


    Packing1.OEM Genuine packing
    2. Neutral packing
    3. According to customers request
    4. Standard export packing
    Shipping1.By expressDHL, FedEx, UPS, TNT, ESM etc.
    2. By airWe can ship to any port in China with 3 days.
    3. By seaShanghai, Guangzhou, Qingdao, Shenzhen etc.
    Delivery timeWithin 10 working days.


    FAQ


    Q1: Are you a maunfacture or a trading company?


    A: We are a manufacture & Trading company with over 10 years’experience for parts supply service


    Q2: Do you have anything Special compete with others

    A: We will accord customer’s specail needs to have a special processing. And we have nearly a year of warranty period. In addition to the above two points. We also ensure on time delivery.


    Q3: How to ensure the quality of products?

    A: Our relationship factory product by professional workers. In addition, We are also testing every product before delivery. And all material we used as international standard.


    Q4: How can i do if i find the quality of the products with problem?

    A: First of all, We have confidence in the quality of our products. If really found someting wrong. Please provide the picture. We have warranty within one year. So you can set your heart at rest to buy our products.


    Q5. What is your terms of packing?
    A: Generally, we pack our goods in Original box.

    Q6. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q7. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF.

    Q8. How about your delivery time?
    A: Generally, most of items we keep stock for all season . it will take 7to 10 days after receiving your advance payment. if we didn’t have stock ,The delivery time depends on the items and the quantity of your order. Normaly 4 to 5 days .


    Q9. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q10. Do you inspect all your goods before delivery?
    A: Yes, we have 100% test before delivery

    Q11: How do you make our business long-term and good relationship?

    1.Meet small quantity orders and seasonal orders by our sufficient safety stock;

    2.Assure best quality with our complete inspection system before shipment

    3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet;

    4.Provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.


    Our Advantages


    1. Original quality and competitive price.

    2. Professional work team and quick service.

    3. Package complies to Customer’s requirement.

    4. Fast delivery, 1-3 days after received your advance payment.

    5. Long-time exporting experience.

    Our company pays more attention to honesty and credibility, We guarantee. The object you receive is consistent with pictures.
